EM600S12DC 600W Dimmable Dual-Circuit Outdoor 12VDC Transformer

EM600S12DC 600W Dimmable Dual-Circuit Outdoor 12VDC Transformer

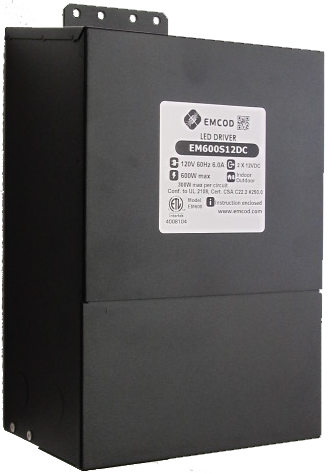

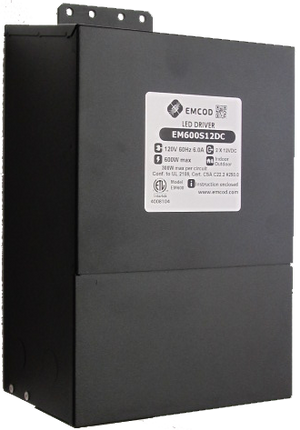

The EM600S12DC is a 600W outdoor magnetic transformer designed to provide 2 x 12VDC power for compatible low-voltage lighting systems. Its black powder-coated steel enclosure is rated NEMA 3R for outdoor installations.

Why Choose the EM600S12DC?

✔ 600W Capacity
Provides up to 600W of power for compatible low-voltage lighting loads.

✔ 2 x 12VDC Output
Designed around a 2 x 12VDC output configuration.

✔ Phase-cut dimmable
Manufacturer specifications identify this model as phase-cut dimmable for compatible dimming applications.

✔ Outdoor NEMA 3R Enclosure
Black powder-coated steel, NEMA 3R construction is intended for outdoor transformer installations.

Electrical Specifications

• Model: EM600S12DC
• Input Voltage: 2 x 120V 60Hz
• Output Configuration: 2 x 12VDC
• Output Voltage - No Load: 12.5VDC
• Output Voltage - Fully Loaded: 11.5VDC
• Maximum Wattage: 600W
• Maximum Output Current: 25A per circuit
• Efficiency: 93%
• Circuit Configuration: 2 circuits, 300W max per circuit
• Dimming: Phase-cut dimmable

Construction & Certification

• Enclosure: Black powder-coated steel, NEMA 3R
• Certification: UL 2108 / CSA C22.2 No. 250.0
• Dimensions: 10.29 x 6.79 x 4.68 in

How to Select the 600W dual-circuit 2 x 12VDC outdoor magnetic transformer

Choose the EM600S12DC when a project requires a 600W dual-circuit 2 x 12VDC outdoor magnetic transformer and the available supply matches 2 x 120V 60Hz. Confirm that every connected fixture accepts 2 x 12VDC and that the planned load fits the transformer’s circuit configuration. Its black powder-coated NEMA 3R steel enclosure is intended for outdoor transformer installations.

This model uses 2 circuits, 300W max per circuit; distribute fixture loads so each circuit and the total system remain within their listed limits. The specifications show 12.5VDC at no load and 11.5VDC at full load, giving installers a reference for expected output as the connected load changes. Final transformer location, wiring, circuit protection and code compliance should be reviewed by a qualified installer before the system is energized.

Frequently Asked Questions

What lighting systems can use the EM600S12DC?
This 600W dual-circuit 2 x 12VDC outdoor magnetic transformer is intended for compatible low-voltage landscape or architectural lighting that accepts 2 x 12VDC power. The connected load must stay within the listed 600W capacity and 25A per circuit output-current limit.

Is the EM600S12DC dimmable?
Yes. The product data lists Phase-cut dimmable. The wall control, transformer and connected fixtures must all be compatible with that dimming method.

Can this transformer be installed outdoors?
Yes. Its black powder-coated NEMA 3R steel enclosure is specified for outdoor transformer installations. Final placement and wiring must still follow the product instructions and applicable electrical requirements.

Compare voltage, capacity, circuit and enclosure options in our low-voltage landscape lighting transformer collection.

Official EMCOD Specification Sheet: Download PDF
