Groundwire 16 Gauge - 500ft

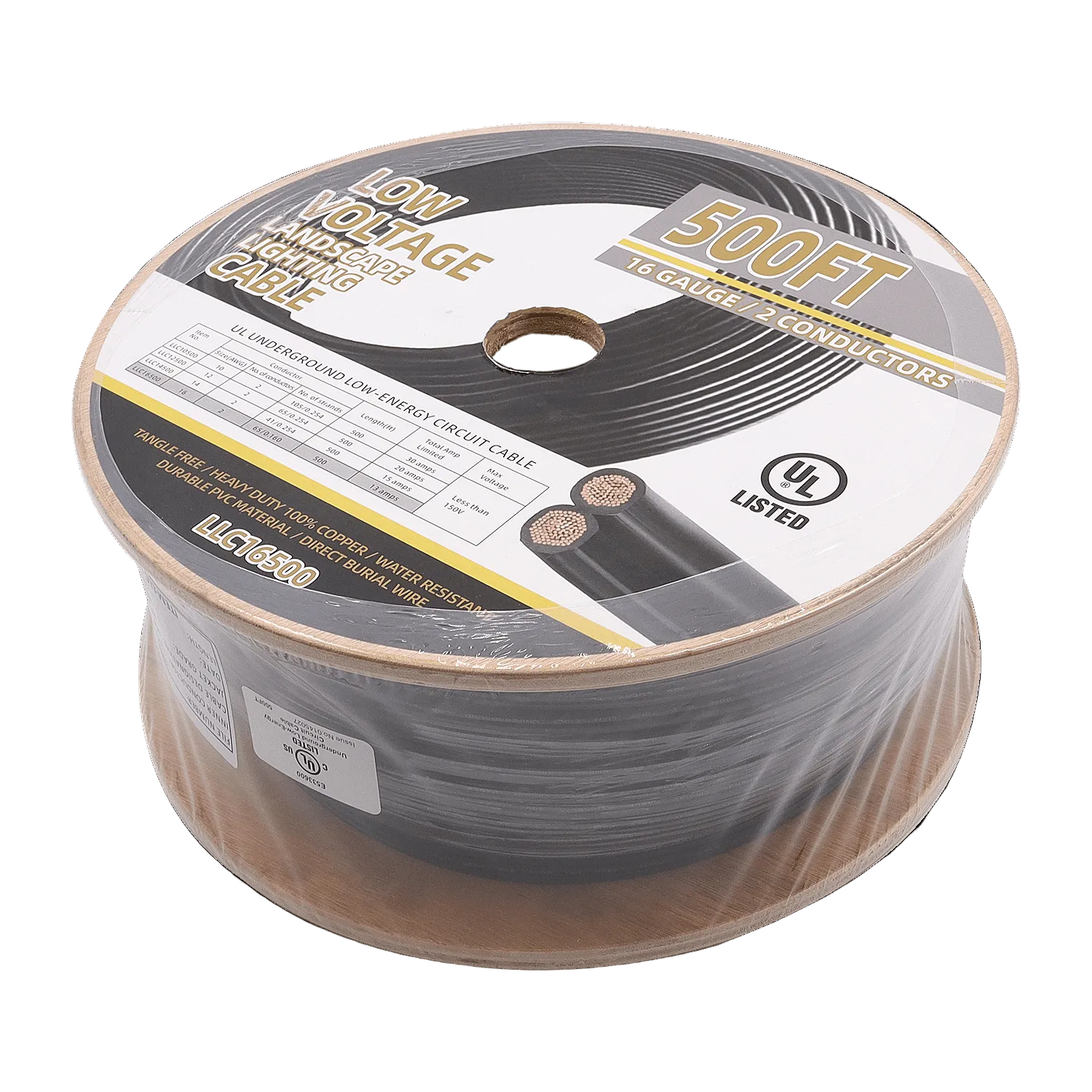

Groundwire 16 Gauge – 500 ft

The Groundwire 16 Gauge 500 ft cable is a UL-listed underground low-energy circuit cable designed for landscape, security, and outdoor accent lighting applications. It features two fully annealed bare stranded copper conductors with premium-grade PVC insulation and jacket, suitable for direct burial or installation in PVC conduit.

Product Specifications

Product Description: LNDSCP LGHT 16/2 STR CU BK / Length: 500 ft
Cable Type: UL Underground Low-Energy Circuit Cable
Voltage Rating: Not to exceed 150 volts
Application: Landscape, security, and outdoor accent lighting applications
Burial Rating: Suitable for direct burial underground and for use with PVC conduits on the surface
Resistance: Resistant to water, dirt, and abrasion
Conductors: Two fully annealed bare stranded copper conductors
Insulation/Jacket: Premium-grade PVC (-20°C to +60°C)
Construction: Insulated/jacketed conductors duplexed in a flat construction for easy tear-down during installation
Standard Color: Black
Optional Colors: White or Brown (subject to minimum order quantity)
Compliance: Meets UL Subj 1493, cUL Standards C22.2 No. 35, CSA Class 5834-01

Packaging Information

Gross Weight: 16.46 lbs
