LT2401 Standard G4 Path Light

12V Standard G4 Path Light – LT2401

The LT2401 Standard G4 Path Light is designed for low voltage landscape lighting applications. Constructed from solid die cast brass with a frosted or clear cylindrical glass lens, this fixture provides reliable pathway and area illumination for residential and commercial outdoor spaces.

Why Choose the LT2401?

✔ Solid Brass Construction
Die cast brass hat and stem offer superior durability and long-term corrosion resistance.

✔ Classic Pathway Design
Clean, timeless styling suitable for walkways, garden beds, and landscape borders.

✔ Flexible Lighting Performance
Compatible with G4 lamps, allowing you to select lumen output, beam spread, and color temperature.

✔ Outdoor Rated
IP65 rated for reliable performance in various weather conditions.

✔ Long-Term Protection
Backed by a 10-year surface finish warranty and lifetime structural warranty.

Technical Specifications – LT2401

• Model: LT2401

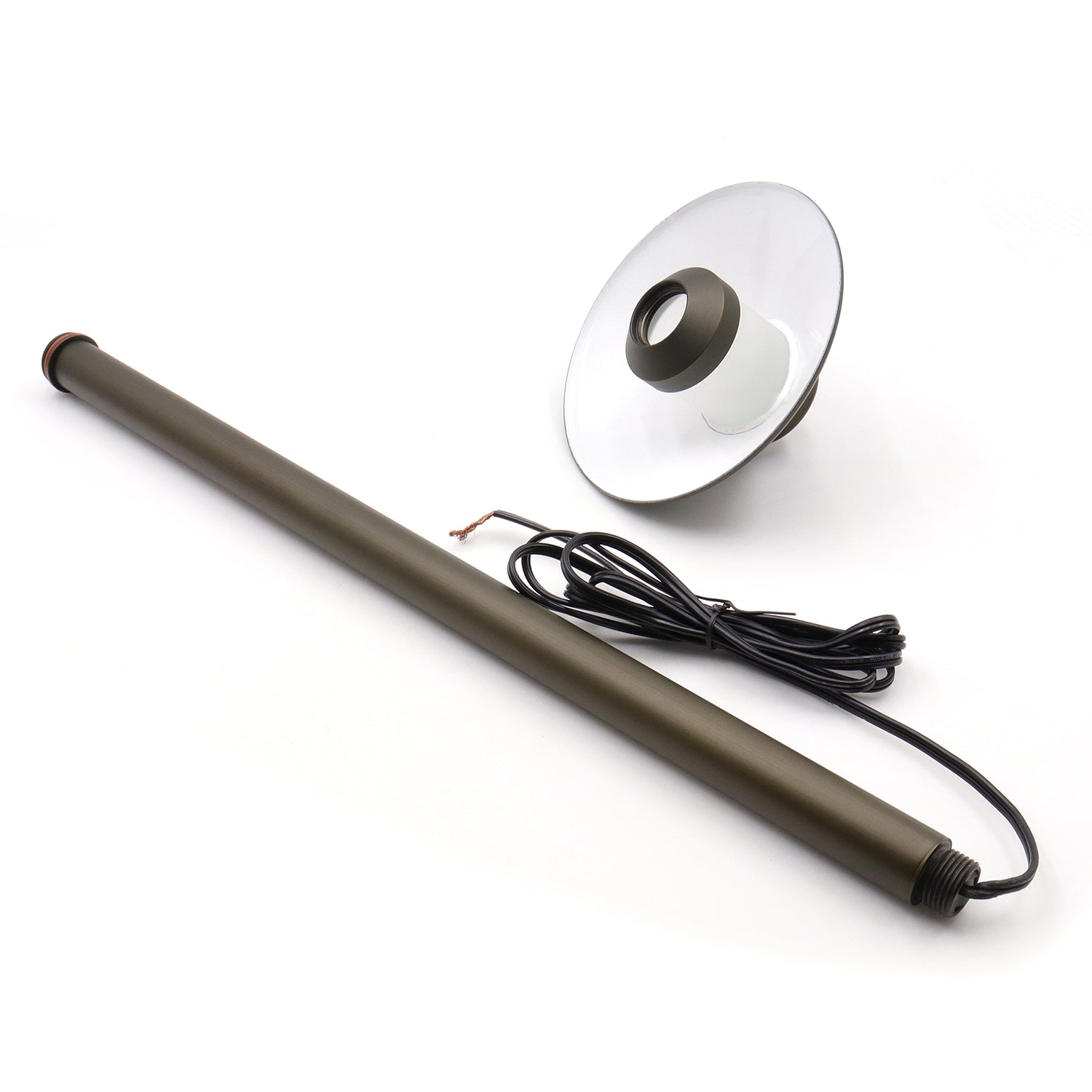

• Housing: Die Cast Brass (Hat and Stem)

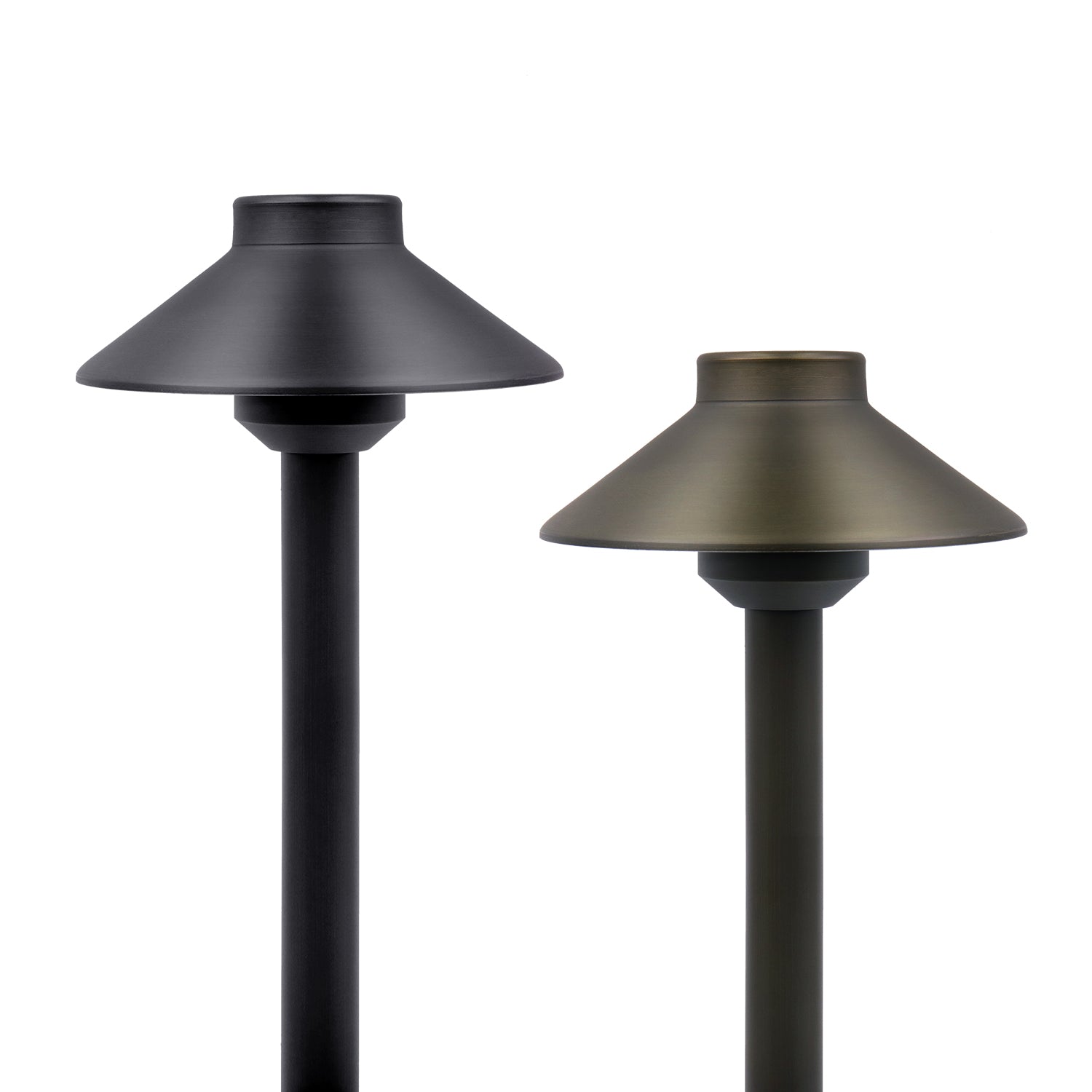

• Finish Options: Antique Bronze / Gun Metal Black
• Lens Options: Frosted or Clear Cylindrical Glass

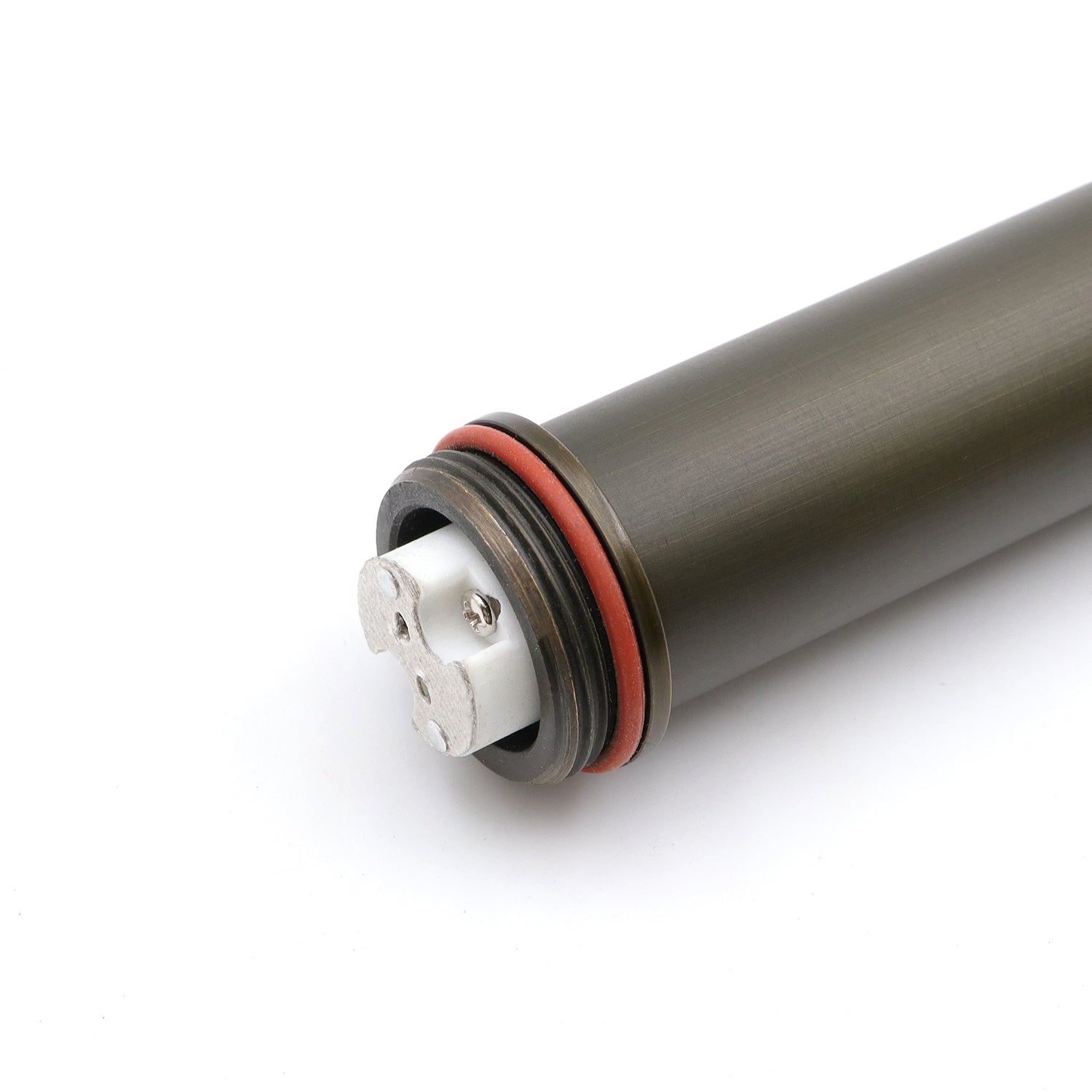

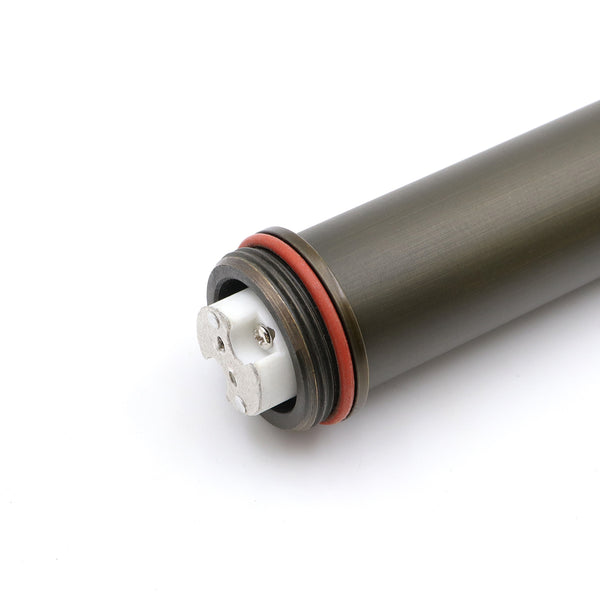

• Socket Type: Fixed GU5.3 Bi-Pin Socket
• Lamp Type: G4 (Sold Separately)
• Input Voltage: 9–17V AC/DC

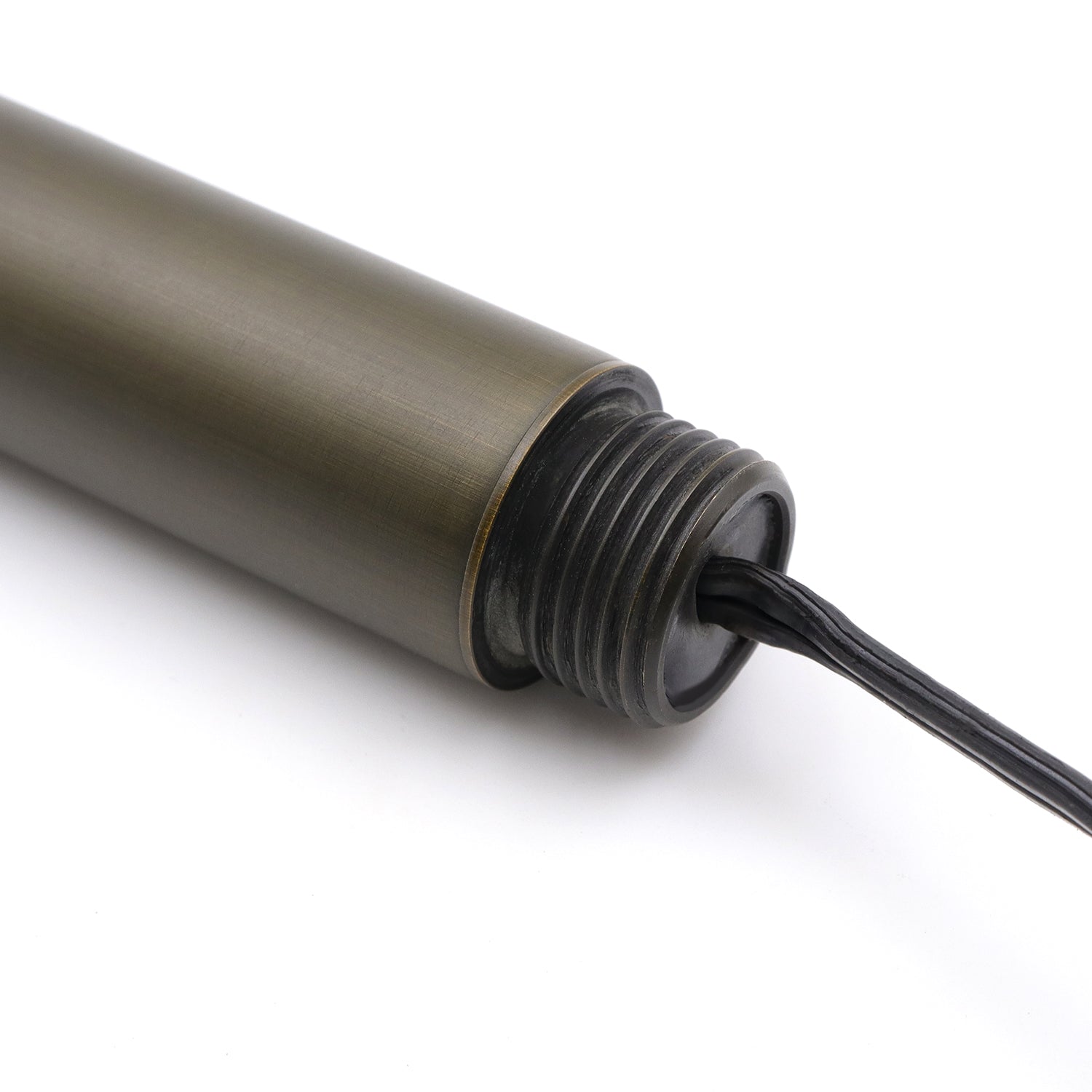

• Lead Wire: 72″ (1.8 meters) SPT-1W, 18AWG
• Mounting: Standard 8.5″ Large Ground Stake (Included)
• IP Rating: IP65
• Certification: ETL
• Working Temperature: -45°C to 45°C
• Output Lumens: According to G4 Lamp
• Beam Spread: According to G4 Lamp
• Color Temperature (CCT): According to G4 Lamp
• Color Rendering Index (CRI): According to G4 Lamp
• Power Supply: LT Tech Low Voltage Transformer (Sold Separately)

Packaging Information

• Hat Package Size: 6.9″ × 6.5″ × 3″
• Stem Package Size: 21.5″ × 1.9″ × 1.9″
• Total Package: 24.02" × 7.32" × 3.35"
• Hat Gross Weight: 0.7 kg
• Stem Gross Weight: 0.63 kg

Warranty

• Surface Finish: 10 Years
• Structure: Lifetime
