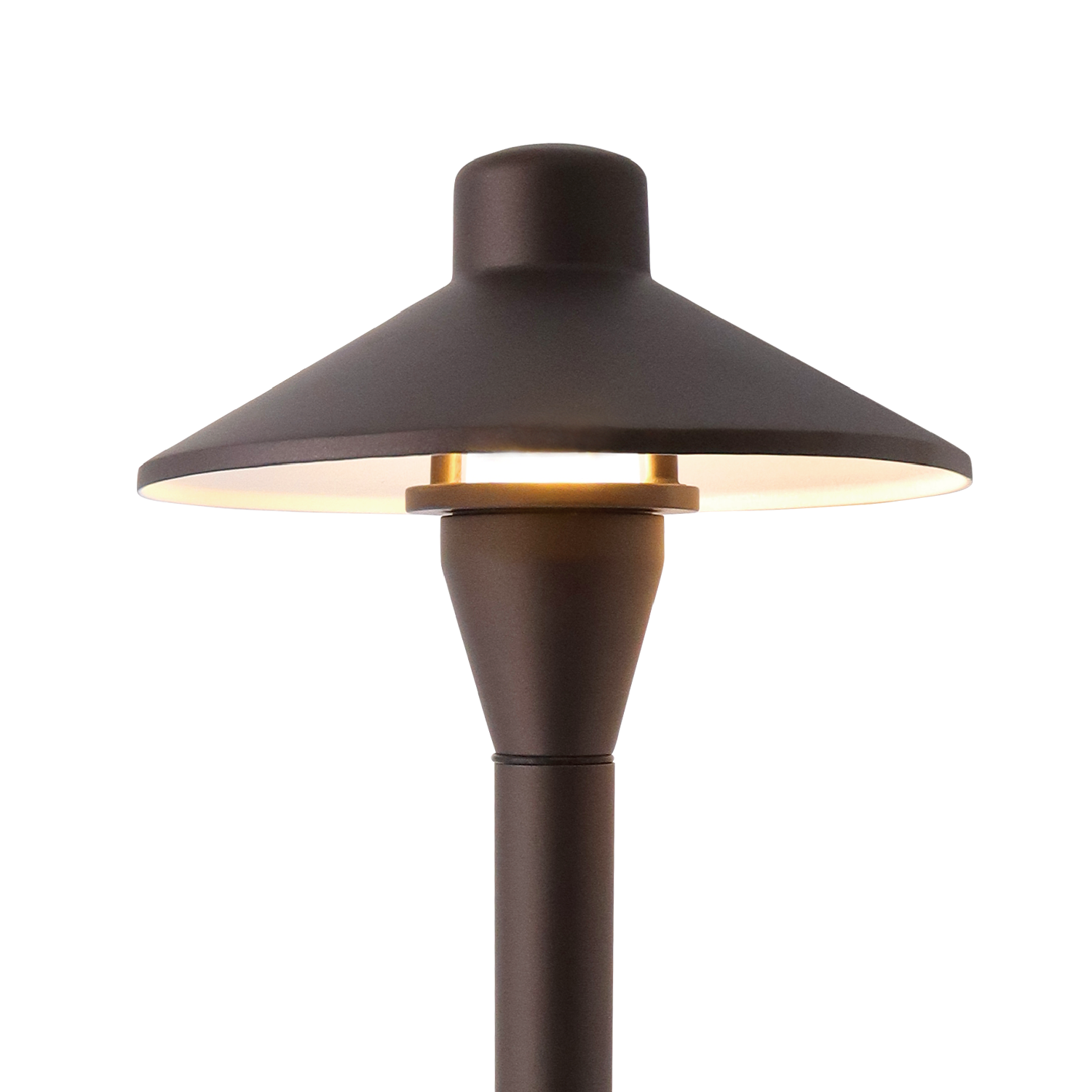

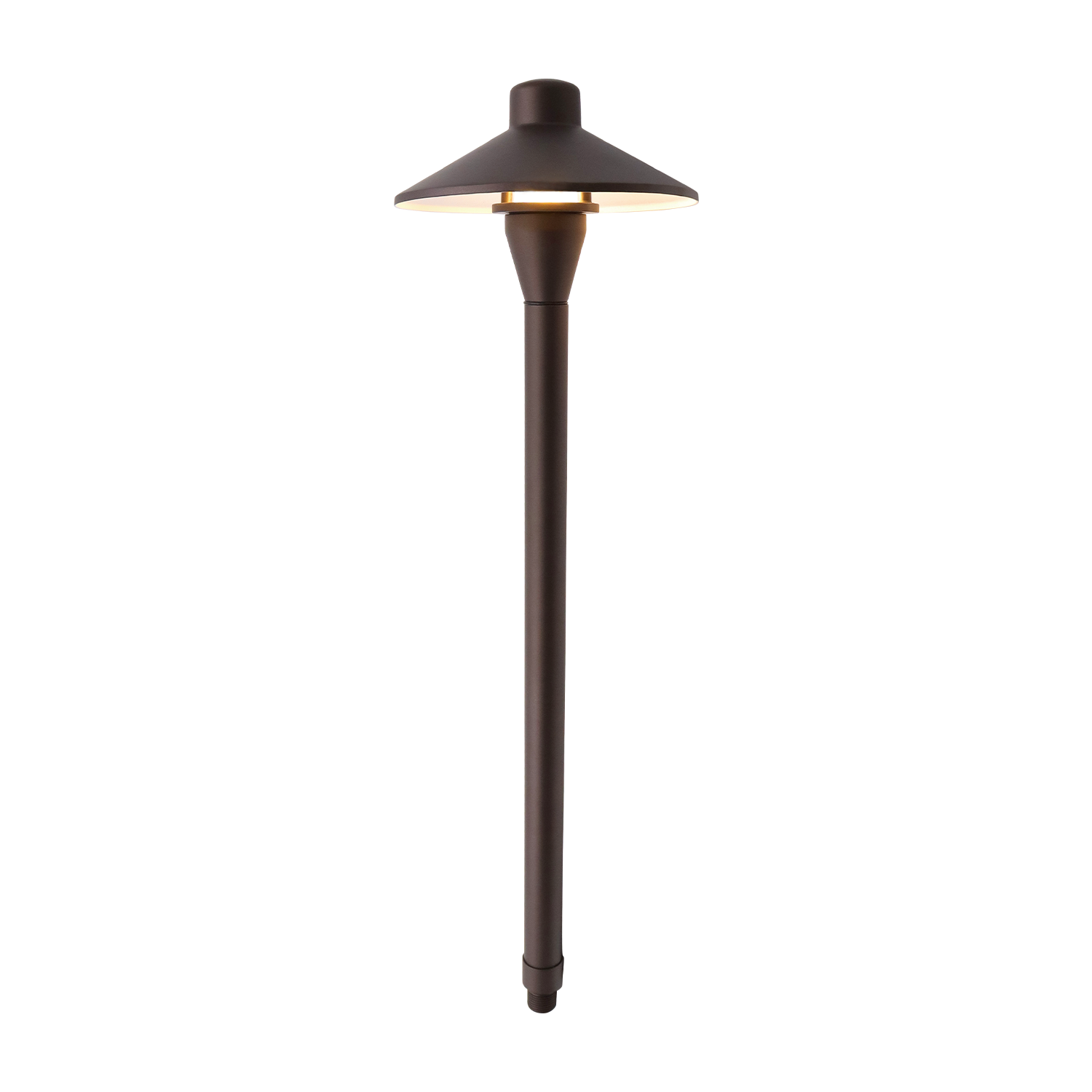

LT2402A Die Cast Aluminum Standard G4 Path Light

LT2402A Die Cast Aluminum Standard G4 Path Light

The LT2402A Path Light is a durable low voltage landscape fixture designed to provide soft, even illumination for walkways, garden beds, and outdoor living areas. Built from heavy-duty die cast aluminum, it delivers dependable performance in residential and commercial landscape applications.

With clean lines, frosted or clear glass lens options, and classic finish choices, the LT2402A blends seamlessly into a wide range of outdoor designs while offering long-term weather resistance.

Why Choose the LT2402A Path Light?

✔ Durable Die Cast Aluminum Construction

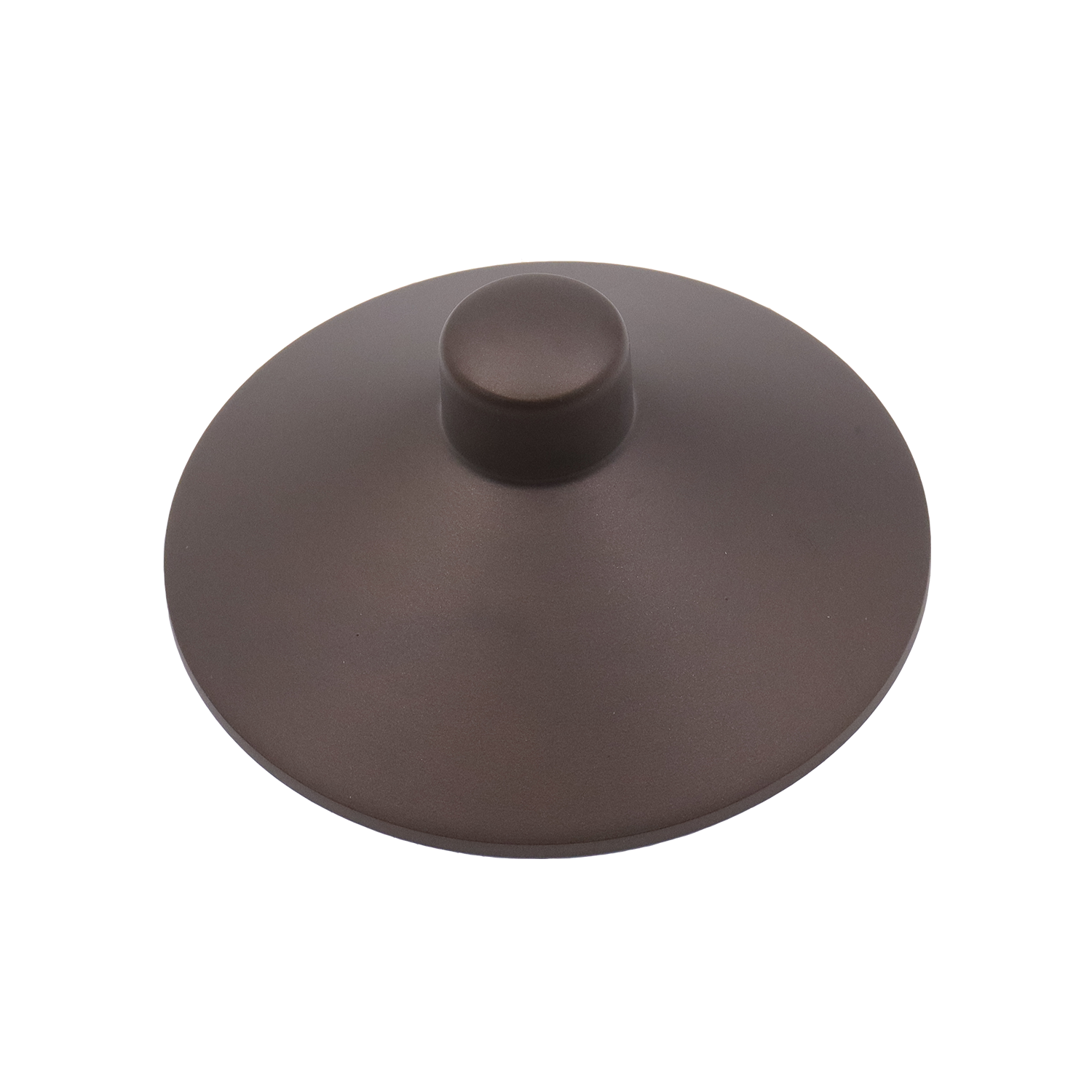

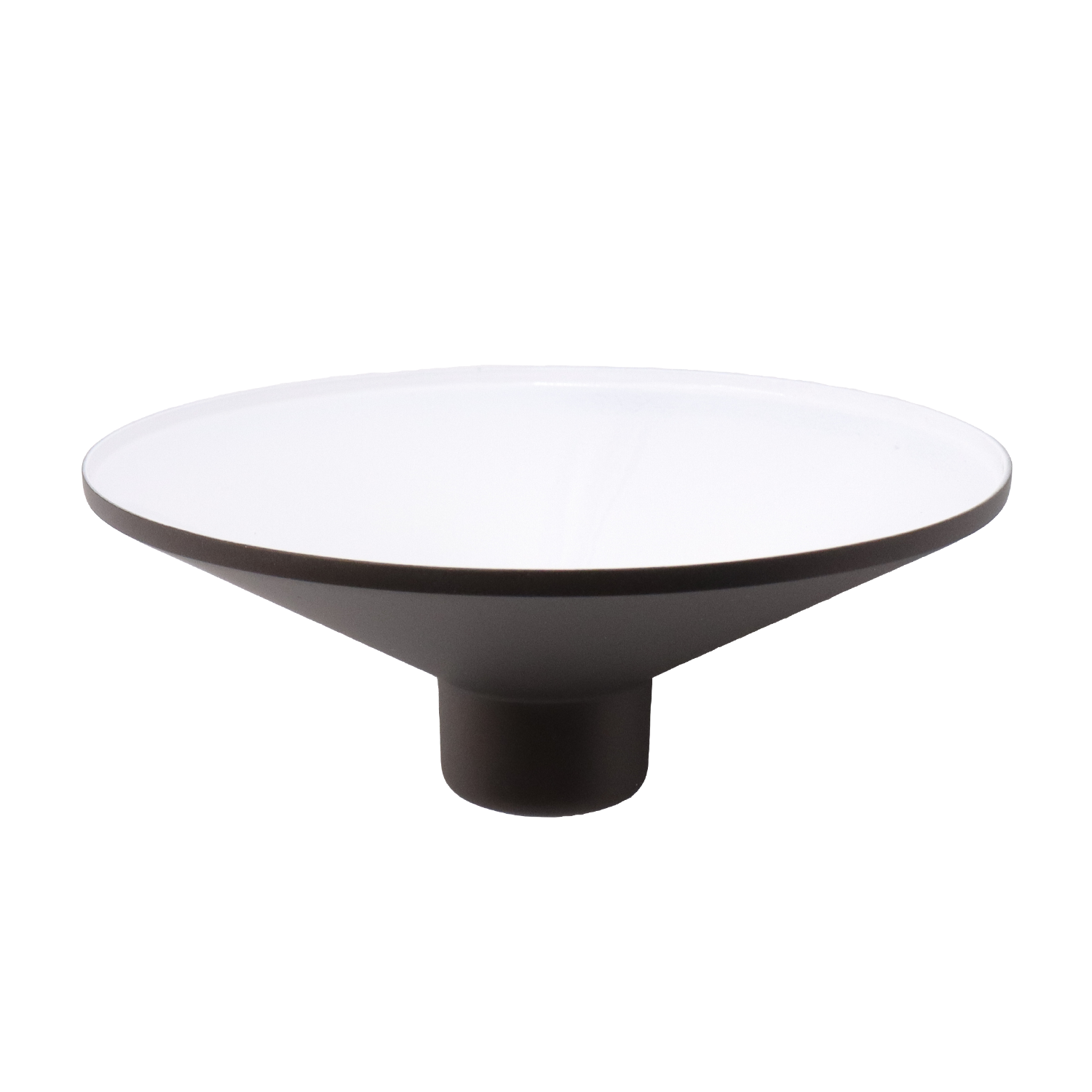

Hat and stem are built from heavy-duty die cast aluminum for strength and corrosion resistance.

✔ G4 Bi-Pin Compatible

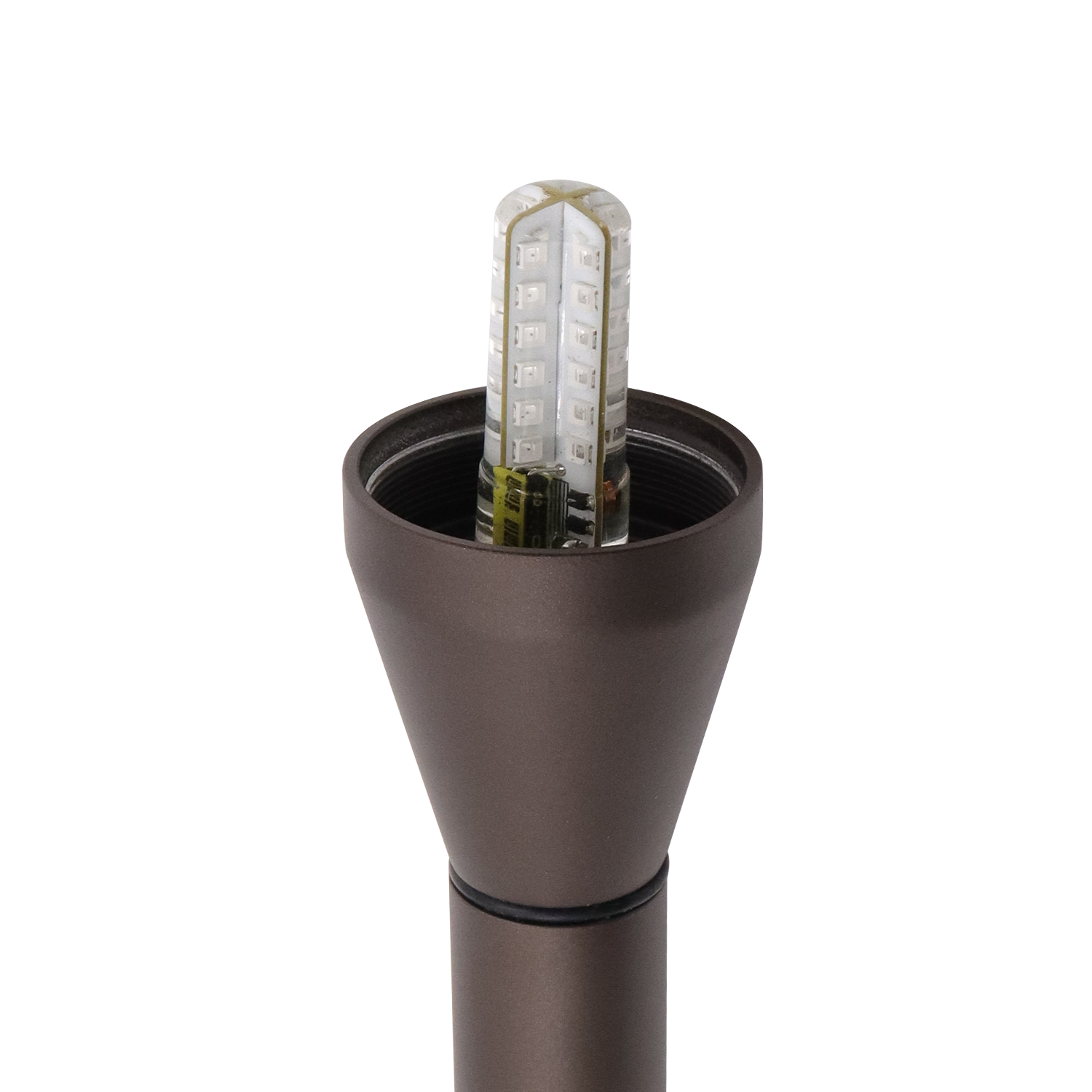

Designed for G4 lamps, allowing flexible lumen output and color temperature options depending on the selected bulb.

✔ Weather-Resistant Design
IP65 rating ensures reliable operation in wet and outdoor environments.

✔ Frosted or Clear Glass Lens
Choose between frosted cylindrical glass for softer diffusion or clear glass for a brighter output.

✔ Prewired for Easy Installation
Includes 72″ (1.8m) 18AWG SPT-1W lead wire and a standard 8.5″ large ground stake for secure installation.

✔ Versatile Finish Options
Available in ORB and Matte Black to complement various landscape styles.

Technical Specifications – LT2402A

Model: LT2402A
Material: Die Cast Aluminum
Finish Options: ORB / Matte Black
Lens: Frosted or Clear Cylindrical Glass
Socket Type: Fixed GU5.3 Bi-Pin
Lamp Type: G4 (Sold Separately)
Input Voltage: 9–17V AC/DC
Lead Wire: 72″ (1.8 meters) 18AWG SPT-1W
Mounting: Standard 8.5″ Large Ground Stake (Included)
Working Temperature: -45°C to 45°C
Waterproof Rating: IP65
Certification: ETL
Transformer: Low Voltage Transformer Required (Sold Separately)
Warranty: 5 Years (Structure Lifetime)

Packaging Details

Hat Package Size: 6.9″ × 6.5″ × 3″
Stem Package Size: 21.5″ × 1.9″ × 1.9″
Gross Weight – Hat: 2.86 lbs
Gross Weight – Stem: 2.86 lbs

Ideal Applications

• Walkway and pathway lighting
• Garden bed illumination
• Driveway borders
• Landscape accent lighting
• Residential and commercial outdoor lighting systems

Lumen output, beam spread, color temperature, and CRI depend on the selected G4 lamp.
