LT2405 Two Tier G4 Path Light

12V Two-Tier G4 Path Light – LT2405

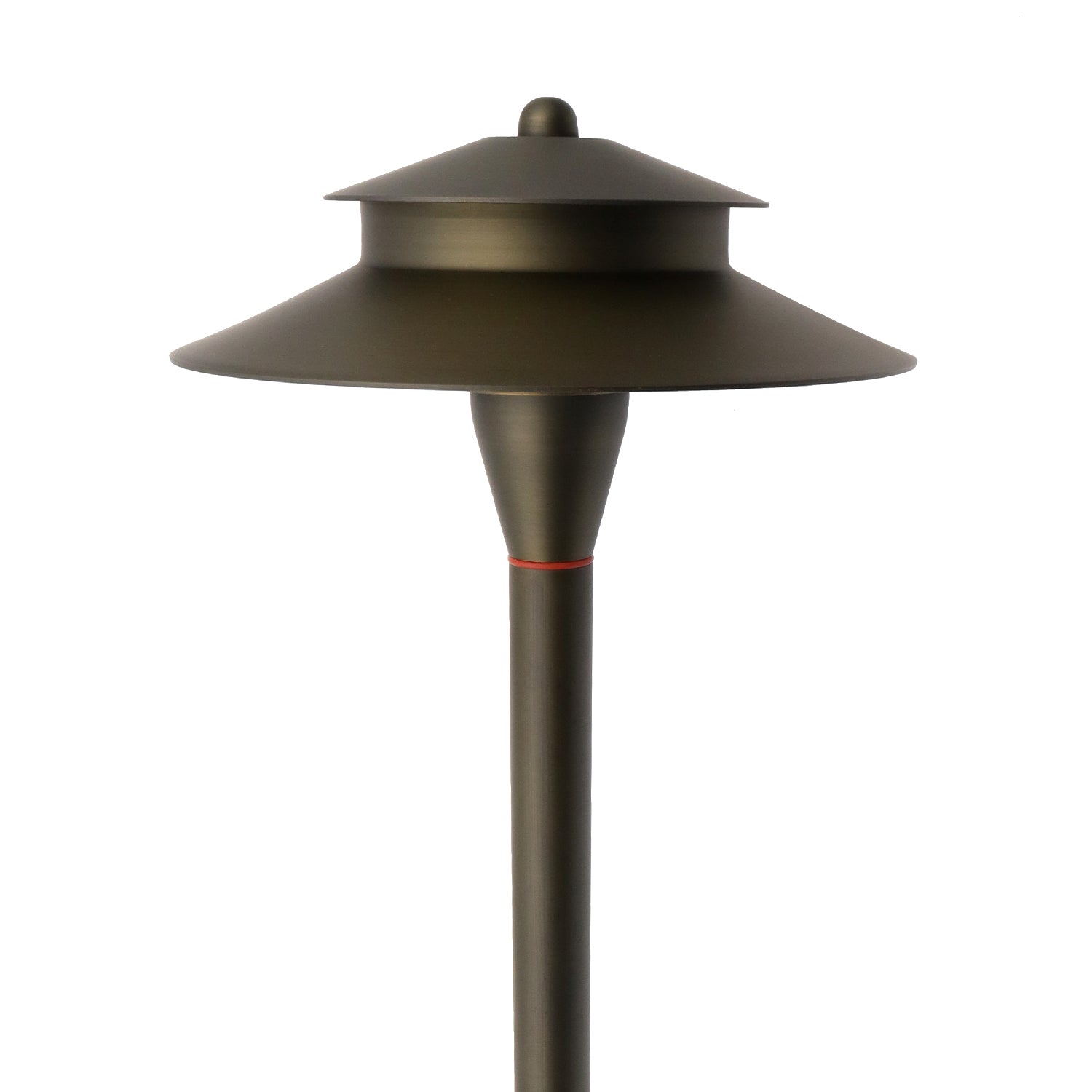

The LT2405 Two-Tier G4 Path Light features an Asian temple tower inspired design that adds architectural character to landscape lighting projects. Built with a die cast brass housing and available in premium finishes, this fixture delivers both durability and refined outdoor aesthetics.

Designed for low voltage systems, the LT2405 provides dependable pathway and area illumination for residential and commercial applications.

Why Choose the LT2405 Two-Tier Path Light?

✔ Solid Die Cast Brass Construction
Heavy-duty brass hat and stem offer superior durability and corrosion resistance for long-term outdoor performance.

✔ Distinct Two-Tier Design
Asian temple tower styling creates elegant layered light distribution for pathways and garden areas.

✔ G4 Bi-Pin Compatible
Designed for G4 lamps, allowing flexible lumen output and color temperature based on the selected bulb.

✔ Flexible Lens Options
Available with frosted cylindrical glass for softer illumination or clear glass for brighter output.

✔ Multiple Mounting Options
Includes standard ground stake and supports canopy surface mount, gutter mount, adjustable brass riser, and hex louver accessories.

✔ Weather-Resistant Performance
IP65 rating ensures reliable operation in outdoor environments.

Technical Specifications – LT2405

Model: LT2405
Housing: Die Cast Brass (Hat and Stem)
Finish Options: Antique Bronze / Gun Metal Black
Lens Options: Frosted or Clear Cylindrical Glass
Socket Type: Fixed GU5.3 Bi-Pin Socket
Lamp Type: G4 (Sold Separately)
Input Voltage: 9–17V AC/DC
Lead Wire: 72″ (1.8 meters) SPT-1W, 18AWG
Mounting: Standard 8.5″ Large Ground Stake (Included)
Additional Mounting Options: Canopy Surface Mount / Gutter Mount / Adjustable Brass Riser / Hex Louver
IP Rating: IP65
Certification: ETL
Working Temperature: -45°C to 45°C
Output Lumens: According to G4 Lamp
Beam Spread: According to G4 Lamp
Color Temperature (CCT): According to G4 Lamp
Color Rendering Index (CRI): According to G4 Lamp
Power Supply: LT Tech Low Voltage Transformer (Sold Separately)

Packaging Information

Hat Package Size: 8.7″ × 8.7″ × 2.8″
Stem Package Size: 23.8″ × 3.3″ × 2.6″
Hat Gross Weight: 0.8 kg
Stem Gross Weight: 0.95 kg

Warranty

Surface Finish: 10 Years
Structure: Lifetime

Ideal Applications

• Pathway lighting
• Garden accent illumination
• Driveway borders
• Landscape focal points
• Residential and commercial outdoor lighting systems

Lumen output, beam spread, CCT, and CRI depend on the selected G4 lamp.
