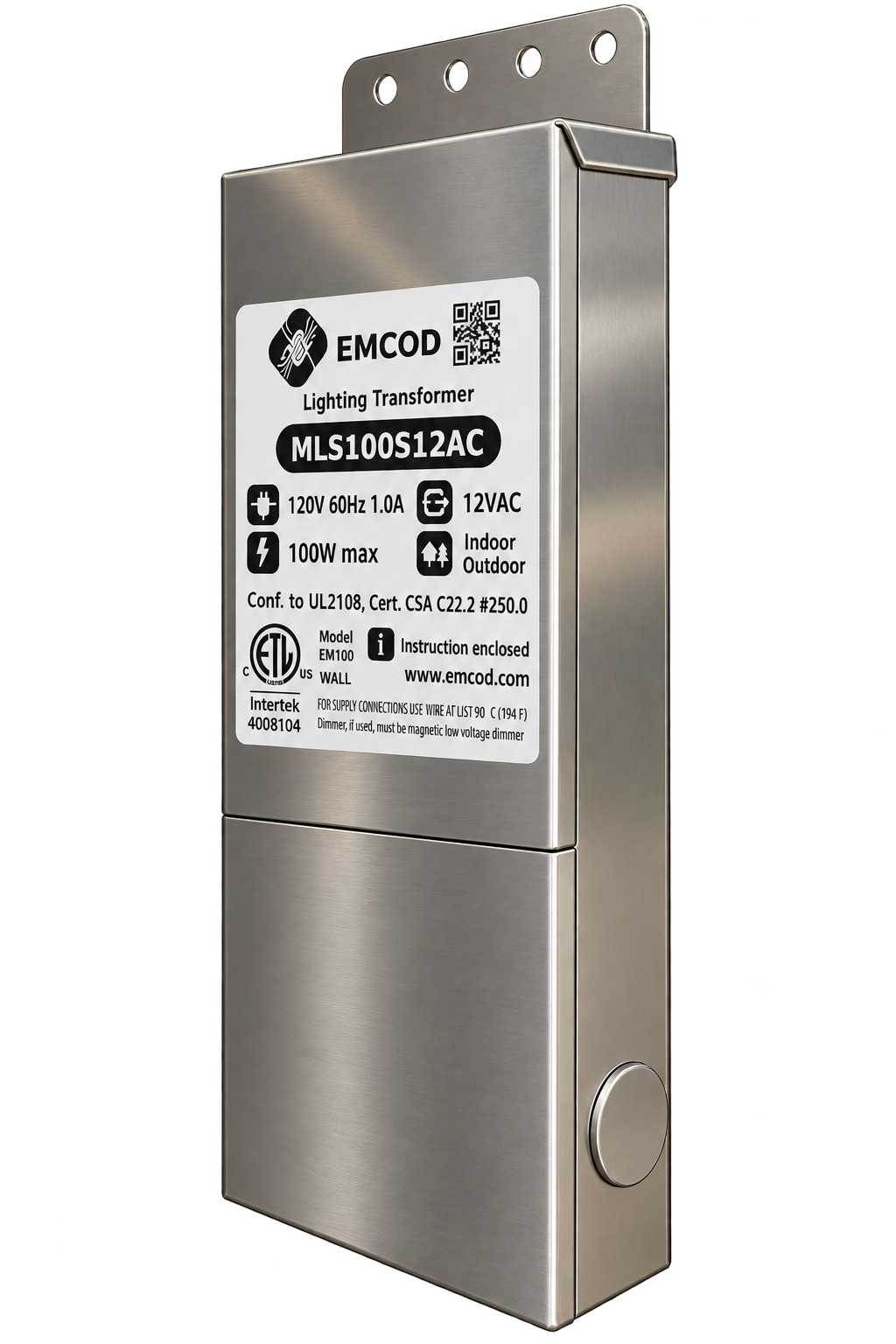

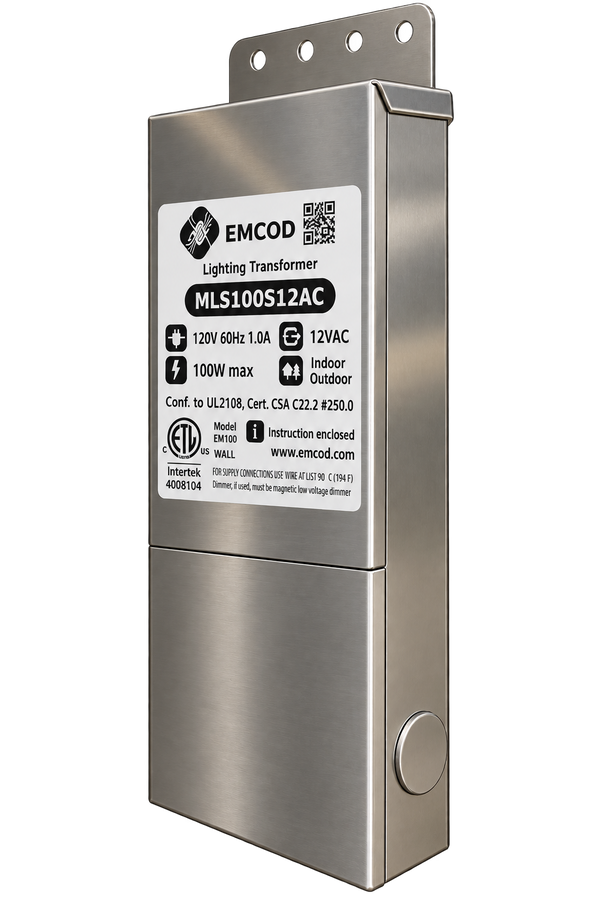

MLS100S12AC 100W 12VAC Magnetic Transformer
The EMCOD MLS100S12AC is a compact 100W 12VAC magnetic transformer designed for compatible low-voltage landscape and architectural lighting. Its low-profile stainless steel enclosure provides a durable power solution for indoor or outdoor systems while keeping the installation footprint compact.
Why Choose the MLS100S12AC?
- 100W capacity: Supplies up to 100 watts for compatible 12VAC lighting loads.
- 12VAC output: Supports low-voltage fixtures designed to operate on alternating-current power.
- Magnetic dimming compatibility: Use a compatible magnetic low-voltage dimmer when dimming is required and confirm that the connected fixtures support the control.
- Thermal protection: Primary and secondary self-reset thermal circuit breakers help protect the transformer during abnormal operating conditions.
- Stainless steel enclosure: Suitable for indoor and outdoor lighting installations when installed according to the supplied instructions.
Electrical Specifications
- Model: MLS100S12AC
- Input: 120V, 60Hz, 1.0A
- Output: 12VAC
- Maximum wattage: 100W
- Circuit configuration: Single circuit
- Connections: Lead wires
- Installation environment: Indoor or outdoor
Construction and Certification
- Enclosure: Low-profile stainless steel
- Safety: ETL listed and marked to UL 2108 and CSA C22.2 No. 250.0
Planning a 100W 12VAC Lighting System
Calculate the combined wattage of all fixtures connected to the transformer and keep the total within its 100W rating. Verify that each lamp, fixture and control is designed for 12VAC operation. Leaving reasonable unused capacity can help account for voltage drop and possible future additions.
Cable gauge and run length affect low-voltage system performance. Final transformer placement, wiring, grounding, circuit protection and code compliance should be reviewed by a qualified installer before energizing the system.
Frequently Asked Questions
Can the MLS100S12AC be used outdoors?
Yes. The product is identified for indoor and outdoor use. Installation must follow the enclosed instructions and applicable electrical requirements.
Does it support dimming?
The MLS series is designed for compatible magnetic low-voltage dimming. Verify compatibility among the dimmer, transformer and connected lighting load.
What can the 100W transformer power?
It can supply compatible 12VAC low-voltage fixtures whose combined wattage remains within the rated 100W capacity.
Compare additional voltage and capacity options in our landscape lighting transformer collection.
