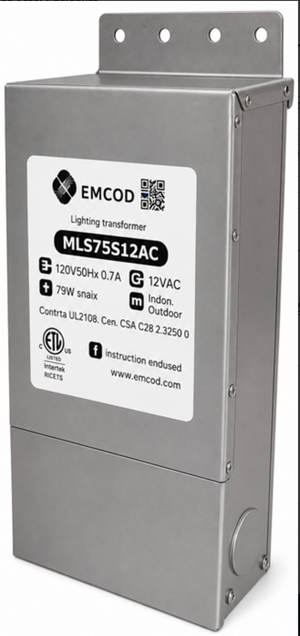

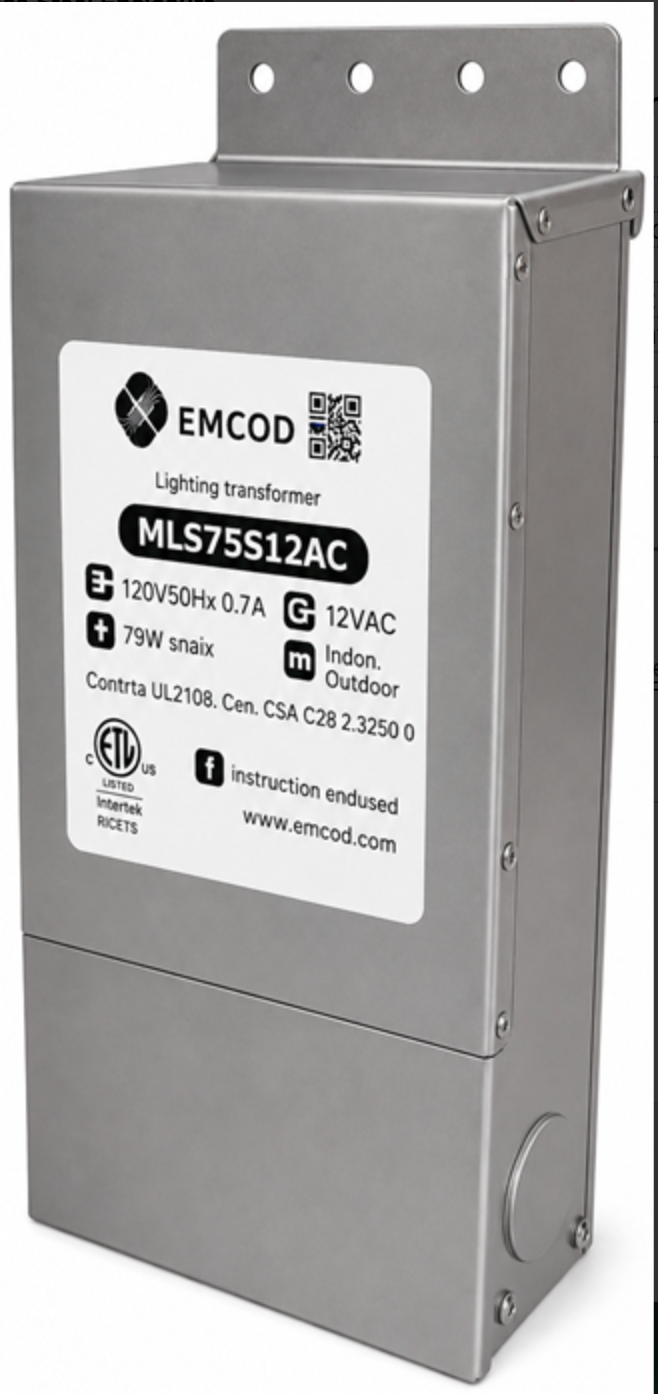

MLS75S12AC 75W 12VAC Magnetic Transformer
The EMCOD MLS75S12AC is a compact 75W 12VAC magnetic transformer for compatible low-voltage landscape and architectural lighting systems. Its low-profile stainless steel enclosure is designed for indoor or outdoor installations where durable, space-conscious power distribution is required.
Why Choose the MLS75S12AC?
- 75W capacity: Supplies up to 75 watts for compatible 12VAC lighting loads.
- 12VAC output: Designed for low-voltage fixtures that require alternating-current power.
- Magnetic dimming compatibility: When dimming is required, use a compatible magnetic low-voltage dimmer and verify the connected fixtures support the selected control.
- Thermal protection: Primary and secondary self-reset thermal circuit breakers help protect the transformer from abnormal operating conditions.
- Stainless steel construction: The compact enclosure supports indoor and outdoor lighting installations.
Electrical Specifications
- Model: MLS75S12AC
- Input: 120V, 60Hz
- Output: 12VAC
- Maximum wattage: 75W
- Circuit configuration: Single circuit
- Connections: Lead wires
- Installation environment: Indoor or outdoor
Construction and Certification
- Enclosure: Low-profile stainless steel
- Safety: ETL listed and marked to UL 2108 and CSA C22.2 No. 250.0
Planning a 75W 12VAC Lighting System
Add the wattage of every fixture connected to the transformer and keep the total within the rated 75W capacity. Confirm that every lamp, fixture and control accepts 12VAC power. Allowing reasonable capacity for voltage drop and future additions can help maintain reliable performance.
Use conductors sized for the planned load and cable length. Final placement, wiring, grounding, circuit protection and code compliance should be reviewed by a qualified installer before the system is energized.
Frequently Asked Questions
Can the MLS75S12AC be installed outdoors?
Yes. The product is identified for indoor and outdoor use. Follow the enclosed installation instructions and applicable electrical requirements.
Is this transformer dimmable?
The MLS series is designed for compatible magnetic low-voltage dimming. Confirm compatibility among the dimmer, transformer and connected fixtures.
Which fixtures can it power?
It can power compatible 12VAC low-voltage lighting loads whose combined wattage stays within the 75W rating.
